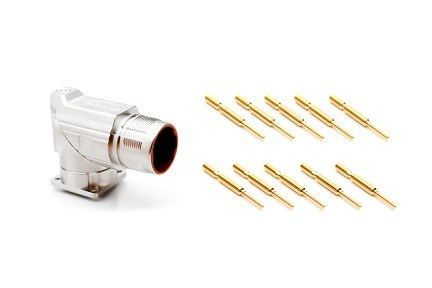

MB5RJN0901-KIT M23, 90° rotatable Receptacle Kit, Checkmate™ Quick Locking, 9 positions, male pins, Standard flange (25.7x 25.7) (MB5RJN0901)

SPECIFICATIONS:

• No. of Positions: 9
• AWG: 14-18
• Max Current: 30A power, 10A signal
• Voltage: 630V power, 250V signal
• Contact type (Pin/Socket): Pin
• Contact Size: 1.0mm, 2.0mm
• Protection: IP67
• Temperature Range: -20°C to 130°C
• Housing Body: Zinc Die Cast, Nickel Plated
• Insulation Inserts: PA66, UL94 V0
• Sealing Material: Dupont Viton®
• Contact Resistance: <5mΩ
• Mating Cycle Durability: >500
• RoHS compliant?: Yes
