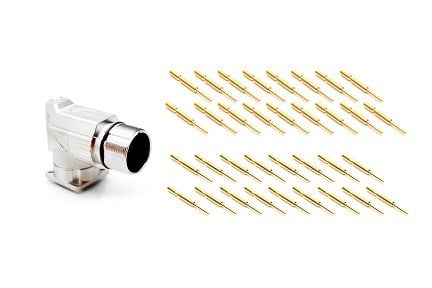

MA7RAE1701-KIT M23, 90° rotatable Receptacle Kit, threaded, E type CW, 17 positions, male pins, Standard flange (25.7x 25.7) (MA7RAE1701)

SPECIFICATIONS:

• No. of Positions: 17
• Style: E type
• AWG: 18-28
• Max Current: 9A
• Voltage: 125V
• Contact type (Pin/Socket): Pin
• Contact Size: 1.0mm
• Protection: IP67
• Temperature Range: -20°C to 130°C
• Housing Body: Zinc Die Cast, Nickel Plated
• Insulation Inserts: PA66, UL94 V0
• Sealing Material: Dupont Viton®
• Contact Resistance: <5mΩ
• Mating Cycle Durability: >500
• RoHS compliant?: Yes
